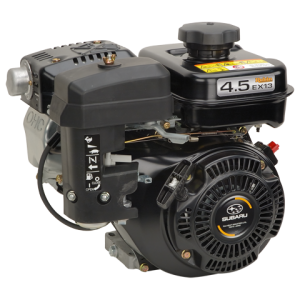

Robin Subaru EX13/16 D (4,3PK)

Model

EX16

Type

Air-cooled, 4-cycle, slant single cylinder,
OHC, horizontal PTO shaft

Bore x Stroke
mm(in.)

67×48(2.64×1.89)

Piston displacement
ml(cu.in.)

169(10.31)

Continuous output
kW[PS](HP)/rpm

1.9[2.6](2.6)/3000
2.2[3.0](3.0)/3600

Maximum output
kW[PS](HP)/rpm

3.2[4.3](4.3)/4000

Maximum torque
N・m[kgf・m](lbf・ft)/rpm

8.1[0.83](6.01)/2500

Direction of rotation

Counter clockwise as viewed from PTO shaft side

Fuel

Automobile(unleaded)gasoline

Fuel Tank capacity
liter(US gal.)

3.2(0.85)

Lubricant

Engine oil SAE 10W-30,20W,30W

Lubrication

Mechanical splashing type

Lubricating oil capacity
liter(US gal.)

0.6(0.156)

Carburetor

Float type

lgnition system

Transistorised

Spark plug

TORCH E6RC (NGK BR6HS)

Starter

Recoil starter

Governor

Centrifugal flyweight type

Dry weight
kg(lb)

15(33.08)

Dimension
length x width x height
mm(in.)

312x359x335
(12.28×14.13×13.19)
