Kategori | TF Seris - Spesifikasi (6.5-30.0 HP/2200-2400 RPM), Yanmar Motor Diesel |
Stok | Ready |

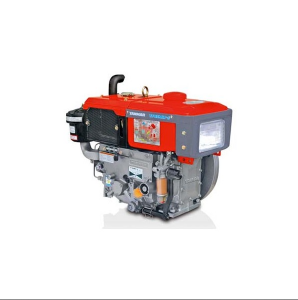

Kode | DIESEL - TF 65 (H-di) |
Di lihat | 3452 kali |
Berat ( /pcs ) | 67.5 Kg |
Harga | Rp 11.745.000 13.645.500 |
Anda Hemat | Rp 1.900.500 (13.93%) |
Specifications
Model |
TF 65 H-di
|
TF 65 R-di
|
TF 65 LYS-di
|
|
---|---|---|---|---|
Type |
–
|
–
|
–
|
|
Engine Model |
Motor Diesel 4 Langkah horisontal berpendingin air
|
Motor Diesel 4 Langkah horisontal berpendingin air
|
Motor Diesel 4 Langkah horisontal berpendingin air
|
|
Combustion |
Injeksi langsung
|
Injeksi langsung
|
Injeksi langsung
|
|
Aspiration |
natural
|
natural
|
natural
|
|
No. of Cylinders |
1
|
1
|
1
|
|
Cyl. Bore x Stroke, mm |
78 x 80
|
78 x 80
|
78 x 80
|
|
Displacement, cc |
382
|
382
|
382
|
|
Direction of Rotation |
berlawanan arah dengan jarum jam (dilihat dari sisi roda gaya)
|
berlawanan arah dengan jarum jam (dilihat dari sisi roda gaya)
|
berlawanan arah dengan jarum jam (dilihat dari sisi roda gaya)
|
|
Governor System |
ok
|
ok
|
ok
|
|
Cooling System |
radiator
|
radiator
|
radiator
|
|
Lubrication System |
pelumasan paksa dengan pompa trochoidal
|
pelumasan paksa dengan pompa trochoidal
|
pelumasan paksa dengan pompa trochoidal
|
|
Starting System |
Manual(engkol)
|
Manual(engkol)
|
Manual(engkol)
|
|
Fuel Type |
Minyak Diesel
|
Minyak Diesel
|
Minyak Diesel
|
|
Rated Output, kW (PS)/min-1 |
5,5/2200
|
5,5/2200
|
5,5/2200
|
|
Fuel Tank Capacity, liter |
7.1
|
7.1
|
7.1
|
|
Specific Fuel Consumption, gr/dk jam |
178
|
178
|
178
|
|
Lubrication Oil, liter |
1.8
|
1.8
|
1.8
|
|
Colling Water Capacity, liter |
8
|
1.25
|
1.25
|
|
Dimentions: Length x Width x Height, mm |
607,5 x 311,5 x 469
|
607,5 x 311,5 x 469
|
607,5 x 311,5 x 469
|
|
Dry Weight, kg |
67.5
|
67.5
|
68.5
|
|
Fuel |
Diesel Fuel
|
Diesel Fuel
|
Diesel Fuel
|
|
Lubrication Oil |
SAE 40 CC/CD
|
SAE 40 CC/CD
|
SAE 40 CC/CD
|
|
Continuous Rated Output
|
Rotation Speed, rpm min-1 Or PS/ min-1
|
5,5/2200
|
5,5/2200
|
5,5/2200
|
Max. Output
|
Rotation Speed, rpm min-1 Or PS/ min-1
|
6,5/2200
|
6,5/2200
|
6,5/2200
|
No-Load Max. Rotation Speed, rpm(min-1) |
2200
|
2200
|
2200
|
|
Air Cleaning System |
Filter udara elemen kering
|
Filter udara elemen kering
|
Filter udara elemen kering
|
|
Balancer |
–
|
–
|
–
|
|
Balancer System |
–
|
–
|
–
|
|
Compression Ratio |
18.1
|
18.1
|
18.1
|
|
Valve position |
Over Head Valve
|
Over Head Valve
|
Over Head Valve
|
|
Ignition System |
Udara bertekanan
|
Udara bertekanan
|
Udara bertekanan
|
|
Exhaust Silencer |
ada
|
ada
|
ada
|
