Kategori | TS Seri - Spesifikasi (19.0-23.0 HP/2200 RPM), Yanmar Motor Diesel |
Stok | Ready |

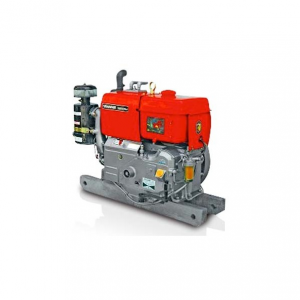

Kode | DIESEL - TS 190 (H-di) |
Di lihat | 3037 kali |
Berat ( /pcs ) | 186 Kg |
Harga | Rp 25.642.020 30.894.000 |
Anda Hemat | Rp 5.251.980 (17.00%) |
Specifications
Model |
TS 190 H-di
|
TS 190 R-di
|
TS 230 H-di
|
|
---|---|---|---|---|
Type |
–
|
–
|
–
|
|
Engine Model |
Motor Diesel 4 Langkah horisontal berpendingin air
|
Motor Diesel 4 Langkah horisontal berpendingin air
|
Motor Diesel 4 Langkah horisontal berpendingin air
|
|
Combustion |
Injeksi langsung
|
Injeksi langsung
|
Injeksi langsung
|
|
Aspiration |
natural
|
natural
|
natural
|
|
No. of Cylinders |
1
|
1
|
1
|
|
Cyl. Bore x Stroke, mm |
110 x 106
|
110 x 106
|
112 x 115
|
|
Displacement, cc |
1007
|
1007
|
1132
|
|
Direction of Rotation |
berlawanan arah dengan jarum jam (dilihat dari sisi roda gaya)
|
berlawanan arah dengan jarum jam (dilihat dari sisi roda gaya)
|
berlawanan arah dengan jarum jam (dilihat dari sisi roda gaya)
|
|
Governor System |
ok
|
ok
|
ok
|
|
Cooling System |
hopper
|
radiator
|
hopper
|
|
Lubrication System |
pelumasan paksa dengan pompa trochoidal
|
pelumasan paksa dengan pompa trochoidal
|
pelumasan paksa dengan pompa trochoidal
|
|
Starting System |
Manual(engkol)
|
Manual(engkol)
|
Manual(engkol)
|
|
Fuel Type |
Minyak Diesel
|
Minyak Diesel
|
Minyak Diesel
|
|
Rated Output, kW (PS)/min-1 |
–
|
–
|
–
|
|
Fuel Tank Capacity, liter |
–
|
–
|
–
|
|
Specific Fuel Consumption, gr/dk jam |
170
|
170
|
168
|
|
Lubrication Oil, liter |
16.3
|
4
|
22.8
|
|
Colling Water Capacity, liter |
–
|
–
|
–
|
|
Dimentions: Length x Width x Height, mm |
881,5 x 454,5 x 660
|
894,5 x 454,5 x 660
|
963.5 x 467,5 x 657
|
|
Dry Weight, kg |
186
|
192
|
205.5
|
|
Fuel |
Diesel Fuel
|
Diesel Fuel
|
Diesel Fuel
|
|
Lubrication Oil |
SAE 40 CC/CD
|
SAE 40 CC/CD
|
SAE 40 CC/CD
|
|
Continuous Rated Output
|
Rotation Speed, rpm min-1 Or PS/ min-1
|
16/2200
|
16/2200
|
19/2200
|
Max. Output
|
Rotation Speed, rpm min-1 Or PS/ min-1
|
19/2200
|
19/2200
|
23/2200
|
No-Load Max. Rotation Speed, rpm(min-1) |
2200
|
2200
|
2200
|
|
Air Cleaning System |
Filter udara elemen kering
|
Filter udara elemen kering
|
Filter udara elemen kering
|
|
Balancer |
Ada
|
Ada
|
Ada
|
|
Balancer System |
sistem balancer ganda
|
sistem balancer ganda
|
sistem balancer ganda
|
|
Compression Ratio |
16.3
|
16.3
|
16.1
|
|
Valve position |
Over Head Valve
|
Over Head Valve
|
Over Head Valve
|
|
Ignition System |
Udara bertekanan
|
Udara bertekanan
|
Udara bertekanan
|
|
Exhaust Silencer |
ada
|
ada
|
ada
|
